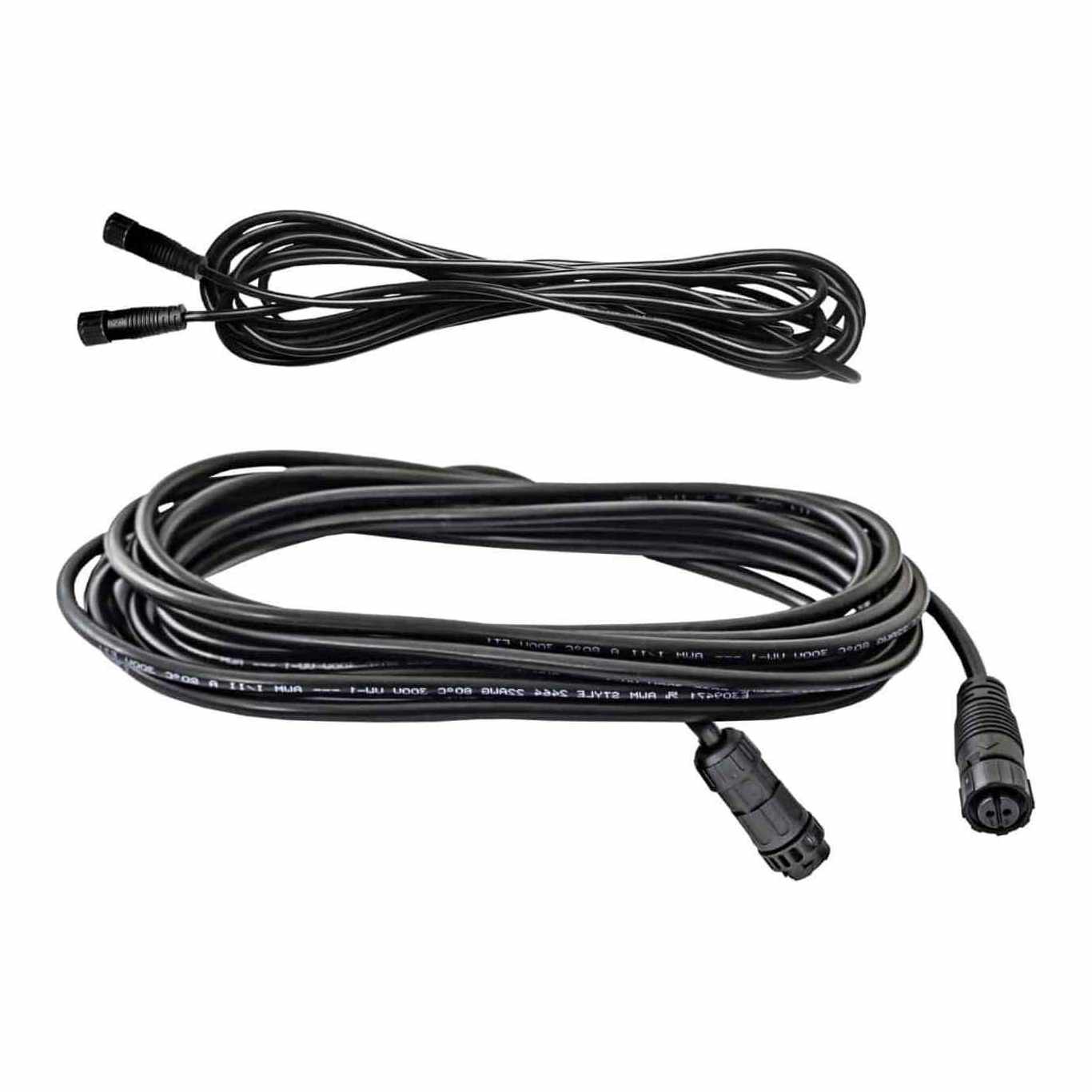

LUMATEK LED Driver Remote Use 5m Extension Cables (x2)

In Stock
These two 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remote and away of the fixture.--These two 5m...
€55,00
customers that viewed this product this week

These two 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remote and away of the fixture.


--

These two 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remote and away of the fixture. Allowing a stable and precise connection without any interference this product is composed by 2 elements:

5m Extension Power Cable for LED driver



5m Extension Dimming Cable





  • KEY SPECIFICATIONS


Product Code: LUMM0016

- 5m Extension Power Cable for LED driver:
M19-2 Self-locking male and female injection molding with 5m extension cable
Wire Gauge: UL SJTW 2x16AWG 300V 105℃
Technical/Test Data:
- Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs
- The withstand voltage between outer cover and electrode is 500 VAC, 2mA, test time is 3S, no breakdown or leakage current occurs
- Insulation Resistance:100MΩ@100V
- Temperature Resistance:105℃
- Working temperature: -20℃-105℃
- Storage temperature: -25℃-105℃
- IP65
- Comply RoHS

- 5m Extension Dimming Cable for LED driver:
M19-2 Self-locking male and female injection molding with 5m extension cable
Wire Gauge: UL 21996 3×22AWG 300V 105℃ VW-1
Technical/Test Data:
- Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs
- The withstand voltage between outer cover and electrode is 500 VAC, 1mA, test time is 3S, no breakdown or leakage current occurs
- Insulation Resistance:100MΩ@100V
- Temperature Resistance:105℃
- Working temperature: -20℃-105℃
- Storage temperature: -25℃-105℃
- Comply RoHS
