DS120W : 120cm x 60cm x 178cm
Reference | DS120W |
Revision | R4.00 |
Weight | 9.8kg |
Dimensions | 120cm x 60cm x 178cm |
Web Plant Support | 1x WEBTH120W |
Water Tray | 1x WT120W |

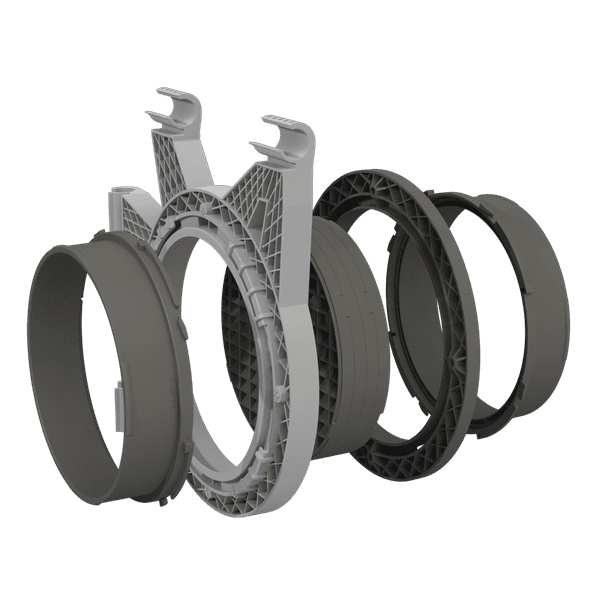

Ducting Flange | 2x Support Kit for poles Ø16mm to Ø19mm (DF16)
2x CONNECTOR Ø125mm (DF16125) 1x LIGHT BAFFLE (DF16LB) DF16 Video |
Cable Flange | 1x CABLE FLANGE Ø70mm (CF7D) Video |
Handling | 2x HANDLING, supporting up to 10kg on a single bar and 20kg per tent.
Length : 120cm |
Accessories included | 1x Pair STRAPITT - Straps for filter
1x Pair HOOKIT - Hooks for lighting 15x CABLEIT - Clips for cables and nets 1x POCKETIT - Tools pouch with adjustable height 1x SPACE BOOSTER - To save place and support WebIT/WebTH 1x PATCHIT - To repair your tent or replace the DF16. Video |
Ventilation advised (not included) | 1x MF16 |
Lighting Advised | Level III (LED PE 2.7) = 200W
Level II (LED PE2.7) = 100W |
Volume Tent | 1.3m3 |
Extraction advised when filter on * | 1 min cycle : Extraction 250m3/h
2 min cycle : Extraction 150m3/h More information here * If no filter, decrease by 40% extraction needs |
Raw materials | Canvas M210D
Poles Ø16mm (Q195 Zing Plated) Corners 2mm PolyPropylene Removable M210D Mylar Water Tray Bottom PE600D & Bag PE210D |
Assembly instructions | > DARK STEET R4.00 INSTRUCTIONS < |
WARNING | Have your electrical installation checked by a professional in case of doubt.
Refer to the document FIRE AND VENTILATION for more information. |
